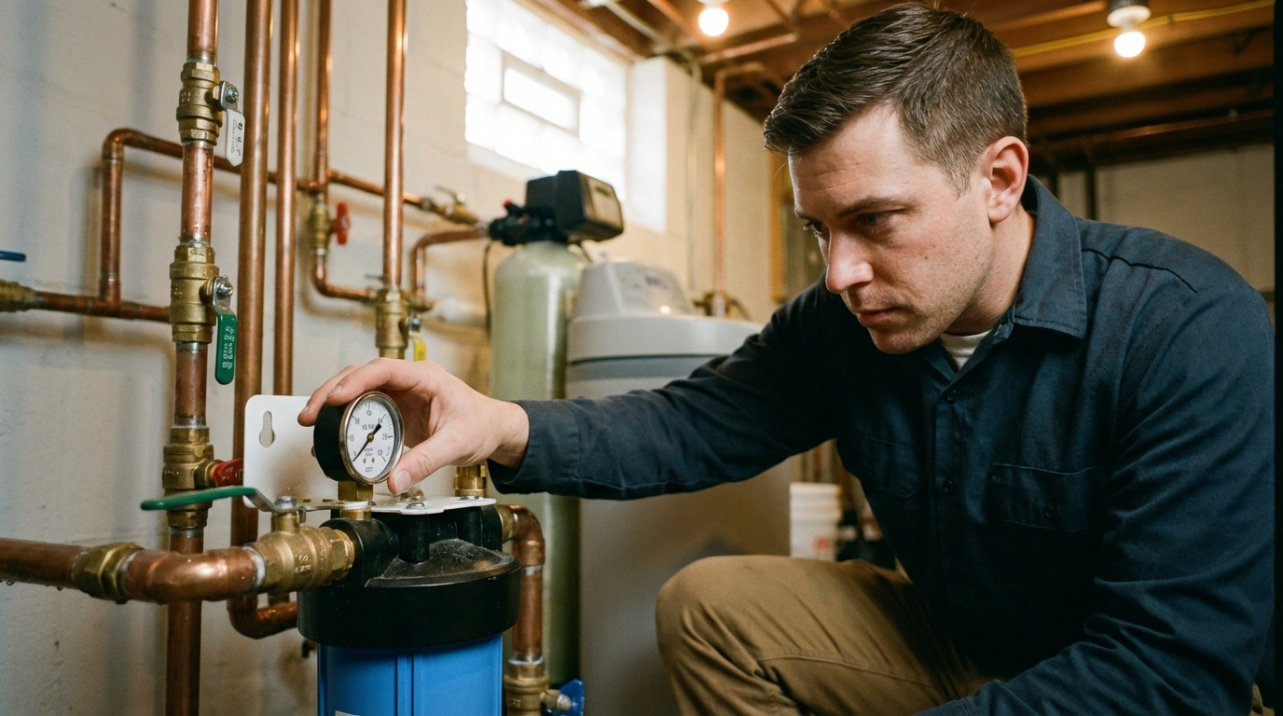

Effective Methods to Calibrate Inaccurate Pressure Gauge Readings in Home Water Filtration Systems

When I walk into a mechanical room or under a kitchen sink to troubleshoot a smart water filtration or home hydration system, one detail tells me more than almost anything else: the pressure gauge. That small dial is your system’s vital sign. If it is lying to you, every downstream decision—when to change filters, whether a booster pump is healthy, how safely your system is operating—starts to drift.

Instrumentation manufacturers and technical guides from organizations such as Ashcroft, WIKA, Swagelok, Tameson, Brannan, and others all converge on the same message: you only get safe, efficient operation when your pressure readings are both accurate and stable. In this guide, I will translate those industrial best practices into practical, home‑friendly methods to diagnose and calibrate inaccurate pressure gauges on water filtration and hydration systems, and help you decide when recalibration is worth it and when replacement is the healthier choice for your water infrastructure.

What “Accuracy” Really Means On Your Pressure Gauge

Before you reach for a screwdriver or a new gauge, it helps to understand what “inaccurate” actually means in technical terms.

Instrumentation references such as Brannan and PREC Group define pressure gauge accuracy as the difference between the true pressure and the gauge indication, expressed as a percentage of the full‑scale range. The key point is that the error is not a percentage of the reading, but a percentage of the entire scale.

If you have a 0–100 psi gauge with an accuracy class of 1.0, it is considered accurate to within ±1 percent of full scale, which means ±1 psi anywhere on the dial. At a true pressure of 60 psi, that gauge is allowed to read between 59 and 61 psi and still be “in tolerance.” Brannan notes common accuracy classes such as 0.25 percent for test standards, around 0.5 percent for critical processes, and 1.0 to 2.5 percent for general industrial and commercial duty. PREC Group echoes similar ranges and emphasizes that higher accuracy usually comes with higher cost and tighter maintenance requirements.

In the context of home water filtration, a gauge that is off by a few psi might not sound dramatic, but it can mislead you about how clogged a filter has become or whether a pump or regulator is set correctly.

Combine that with drift from temperature, vibration, or aging, and your “trusted” reading might be several percentage points away from reality.

Understanding this definition will also help you interpret the calibration examples later in this article.

Is Your Gauge Really Wrong? Simple Checks Before You Calibrate

Homeowners sometimes suspect a gauge is bad when the real issue is elsewhere in the system. Before you commit to a full calibration, it is smart to verify whether the gauge is truly inaccurate or simply reporting an uncomfortable truth about your plumbing.

Visual warning signs from industrial audits

Extensive field audits described by Ashcroft, WIKA, Swagelok, MIEPL, and others document several recurring visual signs that a mechanical gauge is no longer trustworthy. Even though those case studies come from industrial plants, the failure modes are the same on a filter rack in a basement.

Common warning signs include a pointer that flutters so rapidly it is hard to read, a pointer that does not respond at all when pressure clearly changes, or a pointer that sits dented or bent from past overpressure. Ashcroft points out that pointer flutter is strongly associated with pulsation or vibration, while an unresponsive needle often reflects internal damage or blockage. They also note discoloration of the dial or window, and even melted or blackened windows, as evidence of overheating and internal wear.

WIKA and Swagelok add further visual cues such as black dust on the dial from worn movement components, missing windows or back plates due to vibration, or a pointer pegged hard against the stop pin from regular overpressure. MIEPL’s guidance is similar: vibration, pressure spikes, extreme temperature, corrosion, and clogging all leave a distinct “signature” on the gauge.

If your home filtration gauge shows any combination of these symptoms, particularly a stuck pointer or visible damage, you can assume that calibration has likely drifted and mechanical integrity may be compromised.

Quick functional checks you can do in place

Several sources, including Japsin, Kodiak Controls, Pressuremetrics, and Mid‑West Instrument, emphasize that a few simple functional tests can quickly tell you whether a gauge is worth calibrating.

One basic check is the zero test. With the system fully depressurized and water valves closed, the gauge should return to its zero mark. Pressuremetrics and Japsin both note that if a gauge does not return accurately to zero, or sits noticeably above or below it, internal deformation or wear is likely and recalibration or replacement is in order.

A second check is to compare the gauge reading to what you expect the system to be doing. If the house is using multiple fixtures and the pressure gauge never budges, Japsin highlights the possibility of a blocked pressure port or internal failure. On the other hand, if the gauge swings wildly whenever a pump starts, the readings might be real but being distorted by pulsation and vibration rather than calibration error.

A third pragmatic test is comparison against a trusted reference gauge. Tameson and multiple industrial sources define calibration as comparing the device under test to a known standard. Even without a full calibration bench, you can temporarily tee in a high‑quality digital reference gauge at the same tapping point as your installed gauge and see whether the readings agree within the specified accuracy.

If the reference reads 60 psi and your installed gauge reads 55 psi on a 0–100 psi scale, you are seeing a 5 psi error, which is 5 percent of full scale. For a gauge rated at 1 percent of full scale, that would be clearly out of tolerance.

When a gauge is not worth calibrating

Across several sources, a consistent theme emerges: some gauges should be replaced rather than recalibrated. Pressuremetrics advises that low‑cost, general‑purpose gauges showing visible wear or damage are usually more economical to replace. Ashcroft and WIKA stress that severe mechanical damage, corrosion of wetted parts, or abuse such as using the gauge as a step or handle can permanently distort the sensing element.

If the lens is cracked, the case is dented, the pointer is bent, or internal corrosion is visible, calibration will not restore the gauge to safe service. In the context of drinking water and home hydration, where leaks and failures can cause both property damage and contamination risk, erring on the side of replacement is often the healthier choice.

Core Calibration Methods Adapted for Home Water Systems

Once you have confirmed that the gauge is intact and worth saving, you can choose a calibration method. Industrial calibration tutorials, such as the detailed guidance from Tameson, describe a spectrum of methods ranging from simple comparison with a reference gauge to using high‑end deadweight testers. For most home water filtration and hydration systems, you can adapt the simpler techniques safely.

Bench calibration with a hand pump and reference gauge

Tameson describes a typical calibration workflow in which the gauge under test and a reference standard are connected to a pressure source, often a hand pump for lower pressures. The basic steps can be adapted to the pressure ranges common in residential plumbing.

In practice, you remove the suspect gauge from the system and mount it on a test manifold alongside a calibrated reference gauge. A small hand pump pressurizes both gauges simultaneously. You then step through several pressure points across the range, such as low, mid, and high readings, and compare the indication of the test gauge against the reference at each point.

For each pressure point, you allow the readings to stabilize, note the reference value, and read the test gauge. Tameson emphasizes that the gauge should be mounted in the same orientation as in actual service because orientation can affect the indication, and that leaks in the test setup must be eliminated because they will distort the applied pressure.

To interpret the results, you use the accuracy class. Imagine a 0–100 psi gauge with a class of 1.0, giving a permissible error of ±1 psi. At a reference pressure of 40 psi, the gauge should read between 39 and 41 psi. At 80 psi, it should read between 79 and 81 psi. If it reads 74 psi at 80 psi reference, that 6 psi error is 6 percent of full scale and clearly outside the acceptable band.

Tameson also notes the importance of exercising the gauge by pressurizing it up to nominal operating pressure two or three times before taking readings. This helps minimize hysteresis and repeatability errors and gives a more realistic picture of how the gauge behaves in actual use.

Once you have determined the error, some mechanical gauges allow you to adjust the pointer position or movement according to the manufacturer’s instructions. If the gauge lacks adjustment features or the error pattern is non‑linear, replacement is usually more practical for home users.

In‑line calibration using a portable reference gauge

Removing a gauge is not always convenient, especially on compact under‑sink filtration manifolds. In those cases, many plant technicians use what is essentially an in‑line comparison, as described indirectly across multiple troubleshooting guides.

The practical version for a homeowner or installer is to temporarily install a high‑quality reference gauge on the same line, as close as possible to the gauge under test. That can be done using a tee fitting, a spare port on a manifold, or even by swapping the reference into the gauge port for the duration of the test if plumbing layout allows.

Once both gauges see the same pressure, you open a faucet or briefly operate a pump to create a stable flow condition, then compare readings at several operating states, such as no‑flow static pressure and moderate flow. The same accuracy class logic applies. If the difference between the installed and reference gauge stays within the permissible error of the installed gauge, calibration is acceptable. If not, and especially if the error is consistent across conditions, you have good evidence that recalibration or replacement is needed.

This method does not require dedicated calibration pumps or benches and is well suited to whole‑house filtration systems, softeners, and booster pump loops, as long as you can safely relieve pressure and install the reference temporarily.

Swap calibration by using a spare calibrated gauge

Industrial facilities often maintain a pool of calibrated gauges and simply swap them into service, treating the replacement as both calibration and upgrade. That concept translates well to home systems.

Guides from Japsin, Pressuremetrics, and General Instruments all emphasize that when a gauge remains inaccurate despite adjustments, or when the cost of formal calibration exceeds the cost of a new gauge, replacement is the rational choice. For a homeowner, it can be cost‑effective to keep one high‑quality gauge, calibrated or verified periodically, and use it as a roaming reference.

You can temporarily install this reference gauge at key points in your system, compare it to the permanently installed gauges, and then decide which fixed gauges should be replaced. Over time, you effectively “calibrate by replacement,” gradually building a network of trustworthy measurements with minimal equipment.

Hidden Influences: Temperature, Height, Vibration, and Media

One of the biggest surprises for people coming from the wellness and water‑quality side into instrumentation is how much the environment changes the gauge’s truthfulness, even if the gauge itself is healthy. Multiple technical sources outline these error sources, and they directly affect how you should calibrate in a home water context.

Temperature effects on calibration

Ashcroft and PREC Group both quantify the effect of temperature on mechanical gauge accuracy. Ashcroft notes that if a gauge is calibrated at around 68°F, the accuracy can shift by roughly 0.4 percent of full scale for each 25°F change in ambient temperature. PREC Group describes a similar magnitude, citing about ±0.4 percent of full scale for every 18°F change.

In practical terms, if you have a 0–100 psi gauge, and your basement in winter is around 50°F rather than the 68°F calibration temperature, you might see an additional error on the order of a fraction of a psi to around one psi simply due to temperature. If the same gauge lives in a hot mechanical closet near a boiler, with temperatures significantly higher than calibration conditions, the error can grow.

Ashcroft also points out that dry gauges and liquid‑filled gauges have different ambient temperature limits, with common dry gauges rated below about 200°F and typical liquid‑filled gauges rated to around 150°F ambient before discoloration and gasket degradation occur. While those temperatures are far above typical domestic spaces, they can be relevant if a gauge is mounted very close to hot piping, a water heater, or steam lines.

For calibration, the implication is clear: whenever possible, calibrate or at least verify your gauge at a temperature similar to where it will operate, or factor in that small additional temperature‑induced uncertainty when judging the results.

Height and hydrostatic head in water systems

Tameson calls out another subtle source of error in liquid systems: hydrostatic head, which arises from the height difference between the gauge and the calibration device or pressure source when using liquids as the medium. They note that even a height difference of roughly 1 in can introduce about 0.3 psi of apparent pressure difference.

In a home water system, this means that if you compare two gauges that are vertically separated by several feet, you are not just seeing calibration differences; you are also measuring the weight of water between them. When using a portable reference for in‑line calibration, keep the reference at the same vertical level as the gauge under test or account for the height difference in your error calculations.

Vibration, pulsation, and system dynamics

Field experience summarized by WIKA, Swagelok, MIEPL, Valley Industries, and others is remarkably consistent: mechanical vibration and pressure pulsation are among the top causes of gauge failure and drift. Pumps starting and stopping, valves snapping open and closed, and even water hammer from sudden faucet shutoff can all create dynamic loads that shake the movement and add cyclic stresses to the sensing element.

These conditions often manifest as pointer flutter, erratic readings, or progressive zero shift over time. WIKA and Swagelok describe mechanical vibration as a leading cause of early gauge failure in plants, and MIEPL adds that pulsation creates rapidly cycling overpressure spikes that stress internal parts and cause oscillating readings.

From a calibration perspective, it is difficult to maintain accuracy on a gauge that is being constantly abused by vibration. To protect your calibration investment in a home system, you can relocate the gauge to a more stable section of piping, use short flexible connections, or specify a liquid‑filled gauge designed to dampen pointer motion. Several sources recommend liquid‑filled cases or snubbers to smooth out pressure fluctuations, and similar accessories exist for domestic‑scale piping.

Clogging and corrosion in wet plumbing

Ashcroft, WIKA, MIEPL, and Valley Industries all warn about the effects of clogging and corrosion on gauge performance. Clogging occurs when particulate‑laden or viscous media block the gauge’s pressure port or sensing path, causing the gauge to “freeze” at a value that no longer reflects the actual system pressure. Corrosion arises when the wetted materials of the gauge are not compatible with the process fluid, gradually eating away at the sensing element and connections.

While much of the literature focuses on harsh industrial media, the same mechanisms can affect gauges installed on water systems with high sediment, dissolved gases, or chemical conditioners. From a calibration standpoint, a gauge that is partially clogged or corroded may pass a bench test after cleaning but quickly drift again in service.

That is why Ashcroft and MIEPL recommend diaphragm seals, flushing connections, and corrosion‑resistant materials for demanding applications, and why many experts advise replacing badly corroded or repeatedly clogged gauges rather than trying to calibrate around the damage.

How Often Should You Calibrate Gauges in Home Hydration Systems?

Industrial guidance provides useful benchmarks for calibration intervals that we can adapt thoughtfully to residential and light commercial systems.

Tameson, Industrial Electrical Warehouse, and General Instruments converge on a general recommendation of at least annual calibration for many pressure gauges. Tameson notes that calibration frequency should depend on usage and criticality, with heavily used or critical instruments checked more often. General Instruments suggests a typical calibration interval of 6 to 12 months, with critical applications calibrated every 3 to 6 months, and also recommends regular zero‑point checks monthly or quarterly.

PREC Group and other sources reinforce the idea that accuracy degrades naturally over time due to wear, temperature cycles, and environmental exposure, even if the gauge is not heavily used. Mid‑West Instrument’s commentary on digital differential gauges also highlights sensor drift over time, especially under harsh conditions.

In a smart hydration and home filtration context, you can use these industrial intervals as a starting point. Systems that directly protect health, such as those feeding kitchen drinking taps or house‑wide filtration for compromised source water, deserve more frequent verification, especially if gauges are subject to vibration or temperature swings. Non‑critical gauges used mainly for convenience, such as a pressure indication on an outdoor hose loop, may be validated less frequently.

The most important point is to treat gauge calibration like you would filter replacement or annual wellness labs: put it on a repeatable schedule, and tighten that schedule if you observe drift or if the application is particularly sensitive.

A Practical Example: Calibrating a Whole‑House Filter Gauge

To make this more concrete, imagine a whole‑house filtration system with a mechanical pressure gauge on the inlet. Over time, you suspect the gauge is reading higher than reality, making you think your municipal pressure is healthier than it is.

You start by performing the simple checks recommended by Japsin and others. With all fixtures closed and the main valve shut, you verify that the gauge returns to zero. You observe the pointer at eye level; it sits a fraction above zero, suggesting a small zero error. You also inspect the dial window and case; everything looks clean, with no cracks, black dust, or obvious corrosion.

Next, you bring in a portable digital reference gauge that has been recently verified, following the concept of comparison against a known standard described by Tameson and the broader calibration literature. You shut off water, relieve pressure, and install a tee so that both the installed gauge and the reference share the same tapping point at approximately the same height.

You slowly reopen the main valve and watch the gauges as the line pressurizes. The reference settles at a stable pressure. The installed gauge reads several psi higher. You then open a faucet to create a modest flow and allow both gauges to stabilize again. The difference remains essentially the same across both static and flowing conditions.

At this point, you compare the observed error with the gauge’s accuracy class. If it is a 0–100 psi class 1.0 gauge, a persistent 4 or 5 psi difference represents 4 to 5 percent of full scale, well outside its permissible ±1 psi error. Because the gauge passes the visual and functional integrity checks, you could remove it and follow a bench calibration procedure similar to the Tameson method using a hand pump and reference gauge, adjusting the pointer where possible.

However, you also weigh the cost and effort. As Pressuremetrics and several other sources point out, for low‑cost general‑purpose gauges, replacement with a new gauge of known quality can be more cost‑effective than attempted recalibration, especially if you do not have ready access to calibration equipment. In a home hydration setting, where the gauge is not a legal metering device but a health and maintenance indicator, many owners choose to replace the gauge and then verify the new one against the reference to confirm its accuracy.

By following this kind of structured, evidence‑based process, you align your home practice with the calibration standards used in professional instrumentation, without overcomplicating your maintenance routine.

Choosing the Right Gauge So Calibration Stays Stable

Calibration is not a one‑time event; it lives or dies by how well the gauge matches its environment. Selecting an appropriate gauge upfront makes every future calibration more meaningful and longer‑lived.

Swagelok and multiple manufacturers recommend choosing a pressure range such that normal operating pressure sits roughly in the middle of the dial, not at the top. WIKA and Ashcroft echo this, noting that operating near the maximum range leads to overpressure, pointer pegging against the stop pin, and eventual Bourdon tube deformation. MIEPL and other sources suggest selecting gauges with ranges comfortably above normal peaks and, where spikes are likely, even several times higher than steady‑state pressure.

Accuracy class selection should also reflect how critical the reading is, as Brannan and PREC Group emphasize. For test and calibration work, they point to 0.25 percent or even 0.10 percent standards; for critical processes, around 0.5 percent; and for general monitoring, 1.0 percent or somewhat higher may be adequate. In a home water system, gauges used primarily for on‑off decisions, such as filter change indications paired with manufacturer pressure‑drop guidance, may not need top‑tier accuracy, while gauges used to set pump cut‑in and cut‑out points or to monitor sensitive equipment benefit from tighter tolerance.

Environmental compatibility is the third leg of this stool. Corrosion‑resistant materials for wetted parts, robust housings with appropriate ingress protection, and options such as liquid‑filled cases or snubbers for vibration all extend the period during which calibration remains valid. References from WIKA, MIEPL, and others routinely highlight corrosion and clogging as stealthy calibration killers, which is why they recommend diaphragm seals, flushing ports, and media‑compatible alloys for demanding applications.

By treating gauge selection as an integral part of your home hydration design, you reduce how often you will need to recalibrate and improve the reliability of the readings you rely on to protect your water quality.

Here is a concise way to connect application criticality with calibration expectations based on industrial guidance:

A Note on Digital Gauges and Smart Systems

Many modern home hydration systems incorporate digital pressure sensors rather than classic dial gauges. The principles are similar, but with some nuances that Mid‑West Instrument and Etenwolf highlight in other domains.

Mid‑West Instrument explains that digital differential pressure gauges suffer from sensor drift over time, particularly in harsh or high‑use environments. They recommend regular maintenance and calibration, along with proper installation and environmental control, to keep readings accurate. Etenwolf, discussing digital tire gauges, points out that temperature compensation is crucial; digital devices without proper compensation can give misleading readings in very hot or cold conditions.

Translated to a smart water filtration controller, this means you should expect gradual drift and calibration needs even without visible mechanical wear. When your system allows, follow the manufacturer’s instructions to compare digital readings against a known good analog or digital reference at several operating points and apply any available calibration adjustments. As with mechanical gauges, if a digital sensor shows erratic behavior, persistent offset beyond its specified accuracy, or evidence of damage, replacement is usually the appropriate remedy.

Closing Thoughts as a Smart Hydration Specialist

Accurate pressure readings are not just a technical nicety; they are central to how confidently you can manage filtration, protect equipment, and ultimately safeguard the water your household drinks every day. By borrowing calibration practices from respected industrial references and scaling them thoughtfully for home use, you turn that small dial or digital readout into a trustworthy ally rather than a source of hidden risk.

If you treat your pressure gauges with the same care you give to filter changes and water‑quality testing—choosing them wisely, protecting them from abuse, and checking their calibration on a sensible schedule—you build a hydration system that is not only smarter, but measurably healthier for everyone who depends on it.
